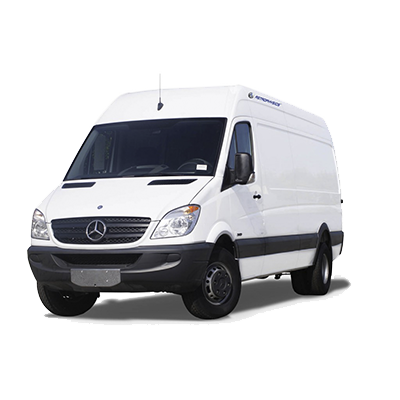

XIS-Minivan

The XIS-Minivan is the newest model in the XIS-Series Mobile Screening product line featuring a tunnel size of 100 cm x 100 cm (39.4” x 39.4”). With an even smaller vehicle profile than the XIS-Van, the XIS-Minivan is the mobile screening solution suited for areas where space is limited, but the need for security is absolute.

The XIS-Minivan mobile screening vehicle features unmatched standards, including a high-powered 180kV generator, Air Conditioning and Exterior Lighting. The XIS-Minivan requires minimal set-up time and features a more compact vehicle with a large tunnel for diverse object screening at any locale.

GENERAL SPECIFICATIONS
Tunnel Size (W x H):
100 cm x 100 cm/ 39.4” x 39.4”

Dimensions (L x W x H):
604 cm x 202.4 cm x 277 cm/ 237.7” x 79.5” x 109”

X-ray Generator:
180kV, Operating at 165kV

XIS-Truck

With a tunnel opening of 101.6 cm x 81.4 cm (40” x 32”), the XIS-Truck can screen diverse parcels, baggage and cargo for explosives and contraband. The XIS-Truck is designed for outside events, border checkpoints, and various mobile screening needs.

The X-ray system is custom built into a Ford F-450 Super Duty Truck® complete with cabin air conditioning, a 6.2L V8 engine and the Ford Personal Safety System™.

The XIS-Truck features a high performance vehicle, a state-of-the-art XIS system, extended conveyor belt, and custom retractable awnings and built-in Monitor Stand for fast and convenient screening.

All Astrophysics X-ray Inspection Systems are equipped with Real-Time Diagnostics, a unique Astrophysics feature which allows users to monitor system health. This software was specifically engineered to save you valuable time and money. If requested, Astrophysics would also be able to connect to your system and troubleshoot any issues remotely.

An exclusive Astrophysics option is our 6 Color Imaging, which enables operators to view screened objects in 6 colors, each color correlating to a specific range of Atomic Z-Numbers. 6 Color Imaging enables operators to achieve optimal material identification which improves throughputs.

GENERAL SPECIFICATIONS
Tunnel Size (W x H):
100 cm x 100 cm/ 39.4” x 39.4”

Dimensions (L x W x H):
724 cm x 243.8 cm x 342.3 cm/ 285” x 95.9” x 134.7”

X-ray Generator:
180kV, Operating at 165kV

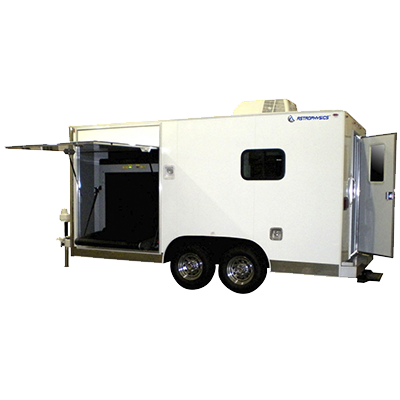

XIS-Trailer

The XIS-Trailer has tunnel dimensions 100 cm x 100 cm (39.4” x 39.4”) and is the ideal solution for flexible screening. It has durable aluminum walls and roofing on a custom steel frame construction. The XIS-Trailer is suitable for both indoor and outdoor applications.

Significantly, this mobile screening vehicle is the first in its class in standard features. The XIS-Trailer includes a high-powered 180 kV generator, Air Conditioning, Exterior Lighting and Uninterrupted Power Supply.

The XIS-Trailer offers a mobile solution to security gaps and includes extensive standard features, and an enlarged tunnel for more diverse screening.

GENERAL SPECIFICATIONS
Tunnel Size (W x H):
100 cm x 100 cm/ 39.4” x 39.4”

Dimensions (L x W x H):
623.8 cm x 228.6 cm x 352.2 cm/ 246” x 90” x 138.6”

X-ray Generator:
180kV, Operating at 165kV
